Saturating converter HVPS

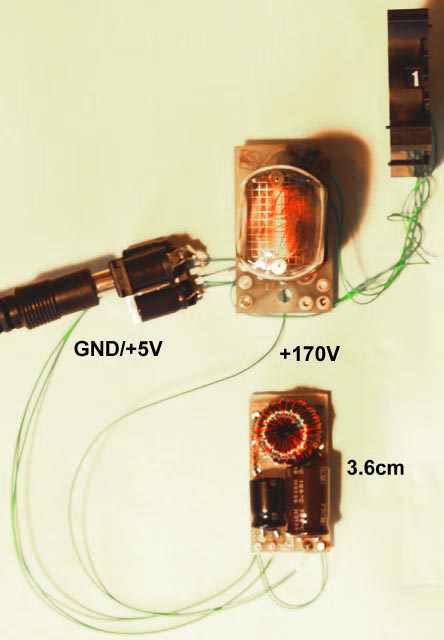

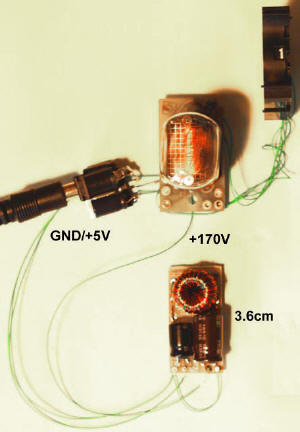

Simple Nixie tube boost converter built so I could play with my first tube.  Draws 72.8mA at 5VDC to produce 170VDC no load.  Turning on a single nixie segment at 710uA load increases the input current to 85mA.



HVPS Comparison
