SOD Package Common JEDEC

EIAJ

Pins FP-X FP-Y Body-X Body-Y LS Fairchild LTC Maxim Micrel National NJR On-Semi Panasonic Rohm Siliconix Toshiba
--- --- --- 2                           VMD2
--- --- --- 2                           EMD2
--- SOD323 SC76 2                           UMD2
--- --- LL34 2                           LLDS
--- SOD123 --- 2                           PMDU
SMA SOD106 SMA 2                         Mini Pwr 2P PMDS
SMB
DO214AA
--- SMB 2
SMC
DO214AB
--- SMC 2
--- --- LL41 2                           LLDL
SOT (<MSOP8) Package Common JEDEC EIAJ Pins FP-X FP-Y Body-X Body-Y LS Fairchild LTC Maxim Micrel National NJR On-Semi Panasonic Rohm Siliconix Toshiba
VMT3 --- --- 3 1.20/0.047 1.20/0.047 1.20/0.047 0.80/0.032 0.80/0.049                 VMT3/VMD3
EMT3FL --- --- 3 1.60/0.063 1.60/0.063 1.60/0.063 0.85/0.034 1.00/0.039                 EMT3FL
SC75-3 SOT416 SC89-3
SC-75A

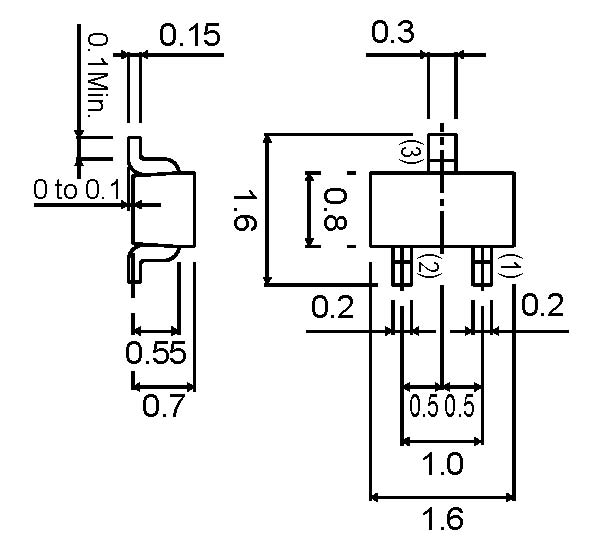

3 1.70/0.067 1.70/0.067 1.70/0.067 1.25/0.049 1.00/0.039                 EMT3/EMD3
SC75-4 --- SC-75A 4 1.70/0.067 1.70/0.067 1.70/0.067 1.25/0.049 1.00/0.039                 EMT4/EMD4

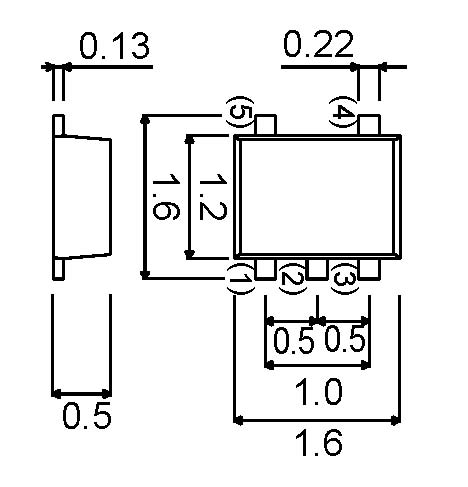

SC75-5 --- SC-75A 5 1.70/0.067 1.70/0.067 1.70/0.067 1.25/0.049 0.50/0.020                 EMT5/EMD5
SC75-6 SOT563F
SOT666
SC-89-6 6 1.70/0.067 1.70/0.067 1.70/0.067 1.25/0.049 0.50/0.020               SS-Mini
6P
EMT6/EMD6 SC89-6
SC70-3 SOT323 SC-70 3 2.00/0.079 2.10/0.083 2.00/0.079 1.25/0.049 1.30/0.051                 UMT3/UMD3
TUMT3
  2-2J1C

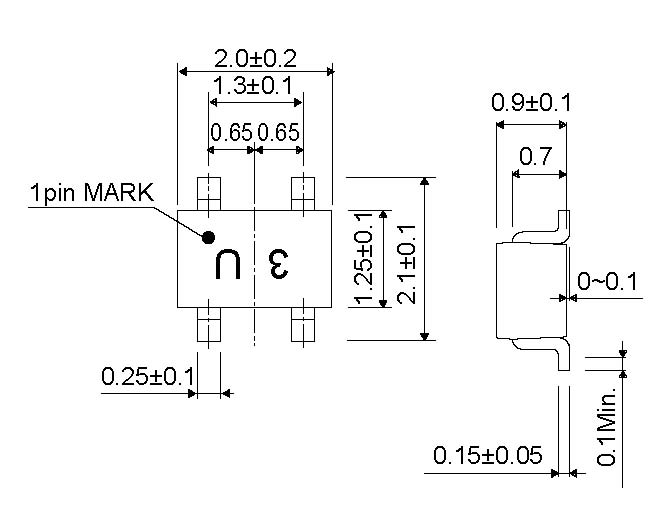

SC70-4 SOT343 SC-84 4 2.00/0.079 2.10/0.083 2.00/0.079 1.25/0.049 1.30/0.051                 UMT4/UMD4

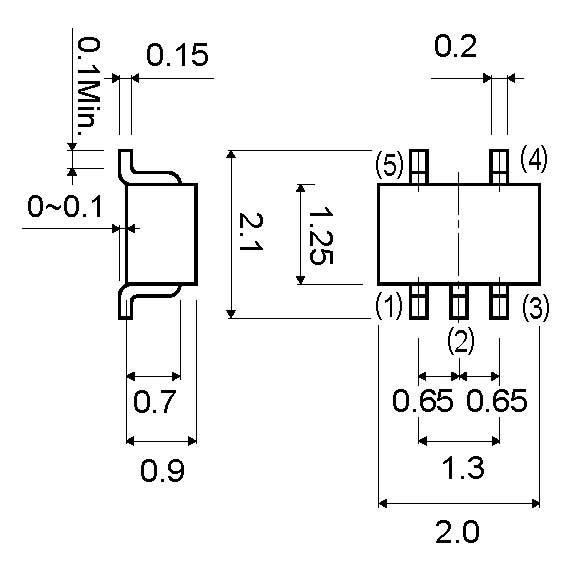

SC70-5 SOT353 SC-88A 5 2.00/0.079 2.10/0.083 2.00/0.079 1.25/0.049 0.65/0.026     21-0076 C5 MAA05A       UMT5/UMD5
TUMT5
  SSOP5-P-0.65A
SC70-6 SOT363 SC-88 6 2.00/0.079 2.10/0.083 2.00/0.079 1.25/0.049 0.65/0.026 SC70-6               UMT6/UMD6
TUMT6
  US6
US8 --- --- 8 2.00/0.079 3.10/0.122 2.00/0.079 2.30/0.091 0.50/0.020             US8
SOT23-3
(Shrink)

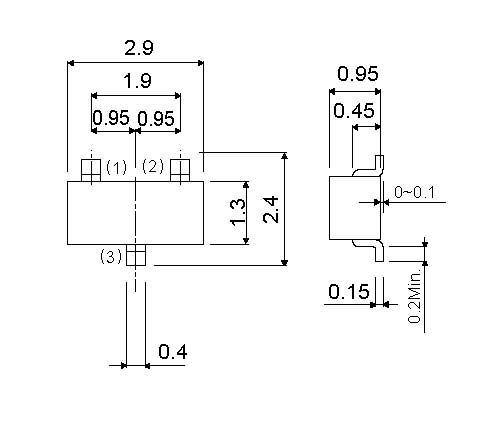

--- --- 3 2.90/0.114 2.40/0.110 2.90/0.114 1.30/0.062 1.90/0.075                 SST3
SOT23-3 SOT346 SC-59 3 2.90/0.114 2.80/0.110 2.90/0.114 1.60/0.062 1.90/0.075                 SMT3/SMD3
TSMT3

SOT23-5 SOT23 SC-74A 5 2.90/0.114 2.80/0.110 2.90/0.114 1.60/0.062 0.95/0.037   S5 21-0057 M5 MF05A MTP-5 TSOP-5
483-01
  SMT5/SMD5
TSMT5
  SSOP5-P-0.95
SOT23-6 SOT457 SC-74 6 2.90/0.114 2.80/0.110 2.90/0.114 1.60/0.062 0.95/0.037 Super
SOT6
S6             SMT6/SMD6
TSMT6
TSOP-6

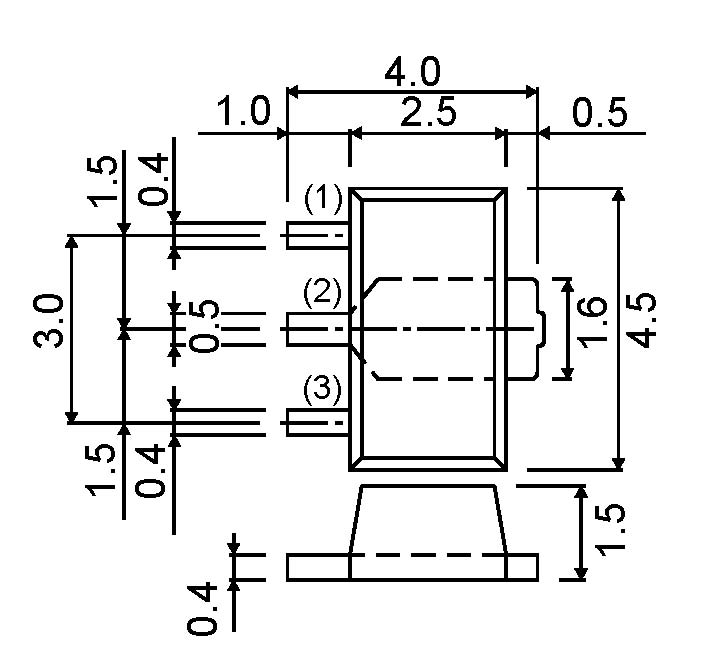

SOT89 SOT89 SC-62 3+ 4.50/0.177 4.00/0.158 4.50/0.177 2.50/0.098 1.50/0.059     21-0078           MPT3
SOT223 SOT223 3+
CPT3 SOT428 SC-63 3+                           CPT3
PSD3 SOT404 SC-83 3+                           PSD3
